DAS PASSIVES - COUPLER
Passive Components for Communications Networks
Directional Coupler - High Performance
Notable Product Features:
- High Performance from 617–4000MHz, PIM≤ = -161dBc
- Designed for indoor/outdoor deployments
- Outstanding performance and reliability

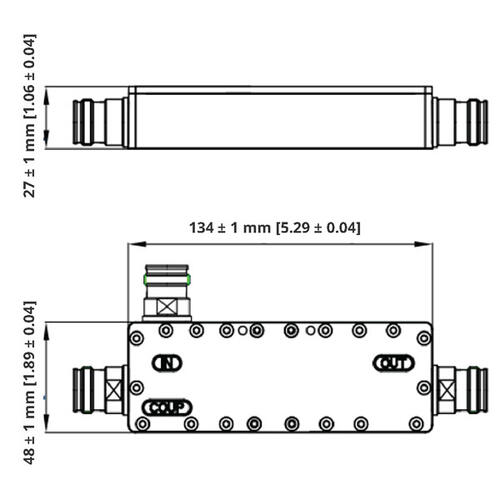

MCXX-617-40004F

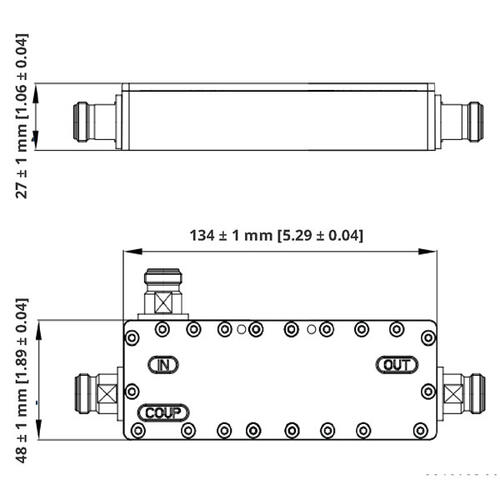

MCXX-617-4000NF
Ordering Information
| Part# 4.3/10 Female Conn | MC5-617- 40004F | MC6-617- 40004F | MC7-617- 40004F | MC8-617- 40004F | MC10-617- 40004F | MC13-617- 40004F | MC15-617- 40004F | MC20-617- 40004F | MC30-617- 40004F |
| Part# N-Female Conn | MC5-617- 4000NF | MC6-617- 4000NF | MC7-617- 4000NF | MC8-617- 4000NF | MC10-617- 4000NF | MC13-617- 4000NF | MC15-617- 4000NF | MC20-617- 4000NF | MC30-617- 4000NF |
| Frequency Range (MHz) | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz | 617–4000MHz |
| Coupling Value (dB) | 5 | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 |
| Coupling Tolerance | ±1.0 | ±1.0 | ±1.0 | ±1.2 | ±1.2 | ±1.3 | ±1.3 | ±1.5 | ±1.5 |
| Insertion Loss (dB) | < 2.4 | < 1.8 | < 1.6 | < 1.2 | < 0.8 | < 0.5 | < 0.4 | < 0.3 | < 0.3 |
| Isolation@617–2700MHz (dB) | 25 | 26 | 27 | 28 | 30 | 33 | 35 | 40 | 45 |
| Isolation@2700–4000MHz (dB) | 23 | 24 | 25 | 26 | 28 | 31 | 33 | 38 | 40 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| PIM3 (dBc) | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm | < -161@2x43dBm |
| Reflection Power, max (W) | 35 | 40 | 50 | 70 | 100 | 200 | 200 | 200 | 200 |
| Average / Peak Power, max (W) | 200/1000 | 200/1000 | 200/1000 | 200/1000 | 200/1000 | 200/1000 | 200/1000 | 200/1000 | 200/1000 |
| Impedance (ohms) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
